SoCare® Slewing Bearing

Slewing Ring Bearings are large-size rolling bearings that can  accommodate axial, radial and moment loads acting either singly or in combination and in any direction .They can perform both slewing (oscillating) movements as well as rotational movements.

A Slewing Ring Bearing consists of an inner ring, an outer ring and rolling elements (balls  or cylindrical rollers) that are separated by polyamide spacers .The rings, one of which usually incorporates a gear ,are provided with holes  to accommodate attachment bolts. The holes may be threaded. Generally , only the raceways in the rings are hardened and precision-ground.Integral seals made of acrylonitrile-butadiene rubber (NBR) keep the lubricant in, and contaminants out of the bearing. Slewing ring bearings are re-lubricated through grease fittings to reduce maintenance and operating costs.

Compared to traditional pivot arrangements, slewing ring bearing arrangements provide many design and performance advantages. The compactness and large inner diameter simplify the design of the bearing arrangement and its associated components .The low sectional height of these bearings means that the pinion lever can be kept short. In most cases only flat mounting surfaces on the associated components are needed.

Slewing Ring Bearings were originally designed to be mounted only on horizontal support structure, but can now be used successfully in vertical bearing arrangements .

Slewing Ring Bearings perform extremely well in a variety of applications such as:

¤ Access platforms

¤ Bucket wheel excavators

¤ Conveyor booms

¤ Cranes of all type

¤ Small ,medium and large excavators

¤ Indexing tables

¤ Ladle turrets

¤ Offshore applications

¤ Robots

¤ Railway bogies

¤ Rotary platforms

¤ Stackers

¤ Solar mirrors

¤ Tunnel boring machines

¤ Wind turbines

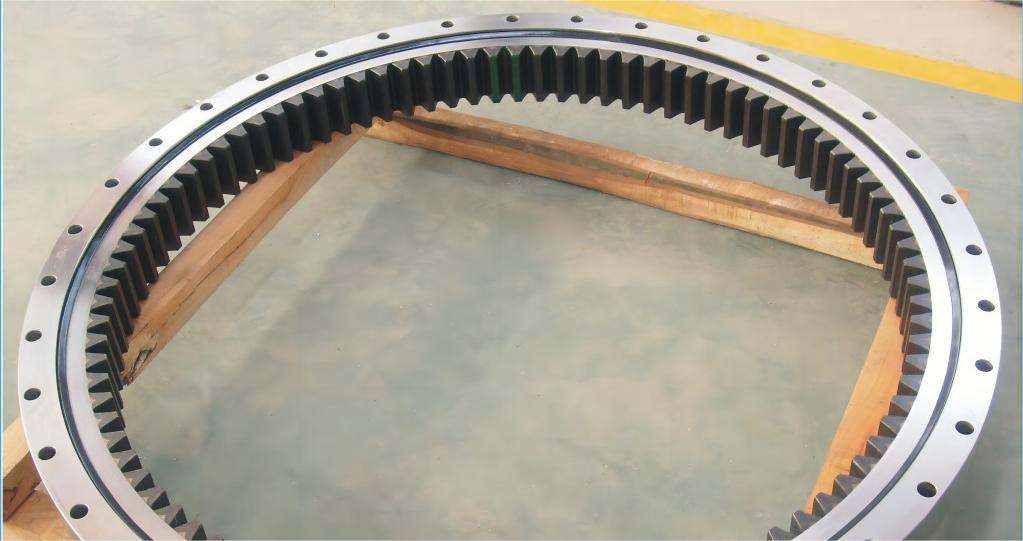

Four-point Contact Ball Slew Ring

Four Point Ball Contact Series designates a heavy duty four-point contact ball bearing. Each raceway is precision ground to form a gothic arch.

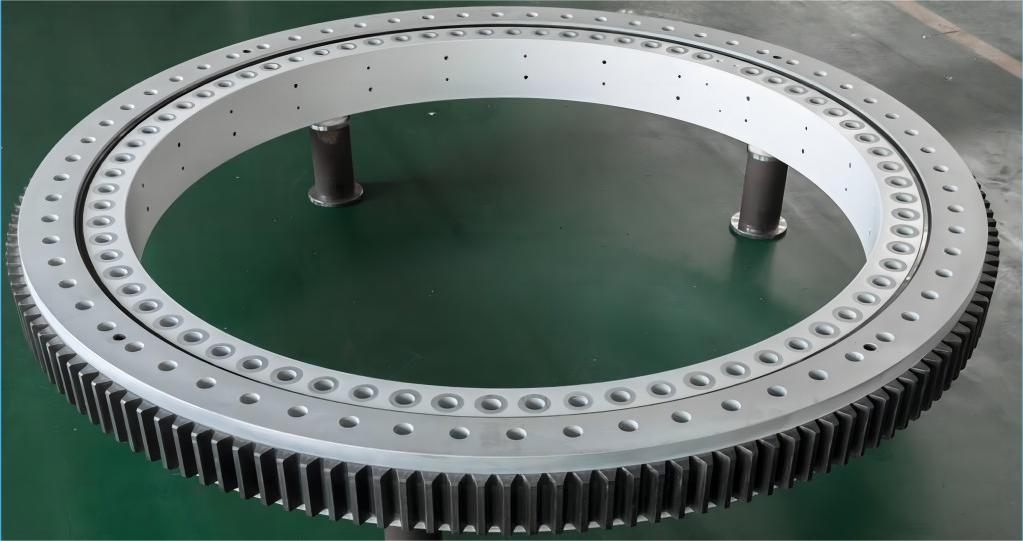

Eight-point Contact Ball Slew Ring

SCB-DT = Double Row Eight Point Ball Contact. 80% increase in capacity vs 4 point contact single row OD size range : 17"-180" Greater capacity using less space

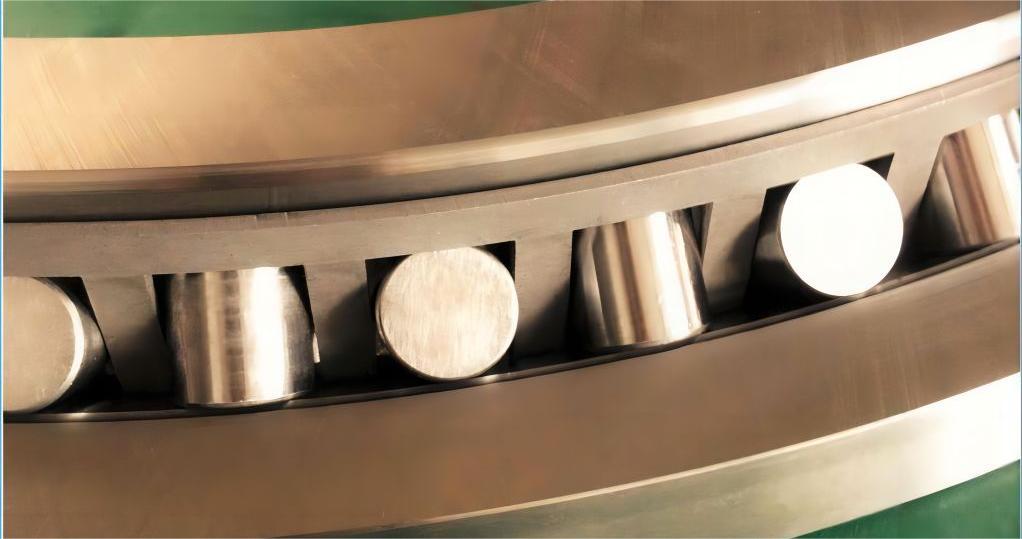

Cross Roller Bearing

They have proved themselves particularly where bearings are subjected to high radial forces and moderate axial and tilting moment loads

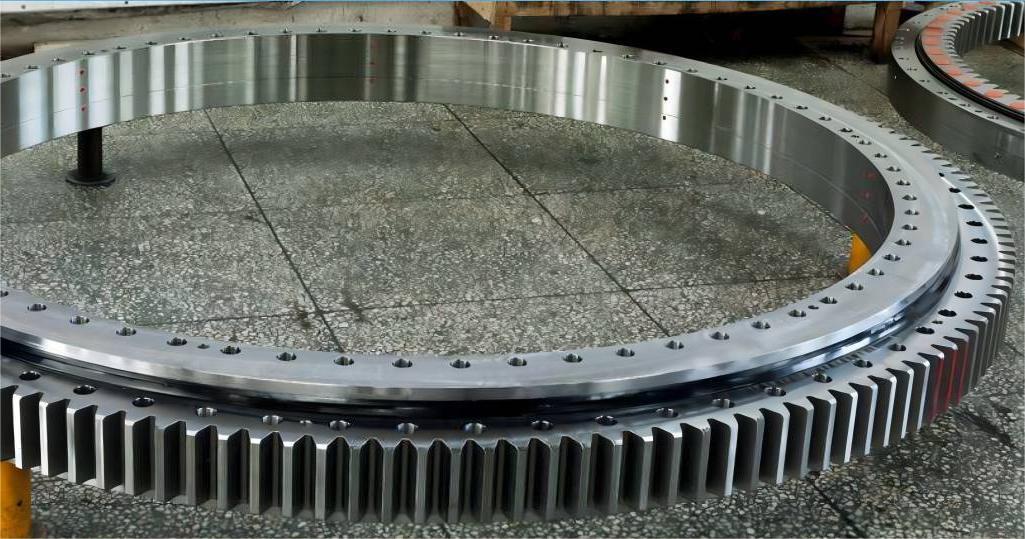

Roller-ball Combined Slewing Ring

SoCare® Roller-ball combined Slewing Bearing is with small eccentricity, long service life, and has the advantages of roller and ball dual structure

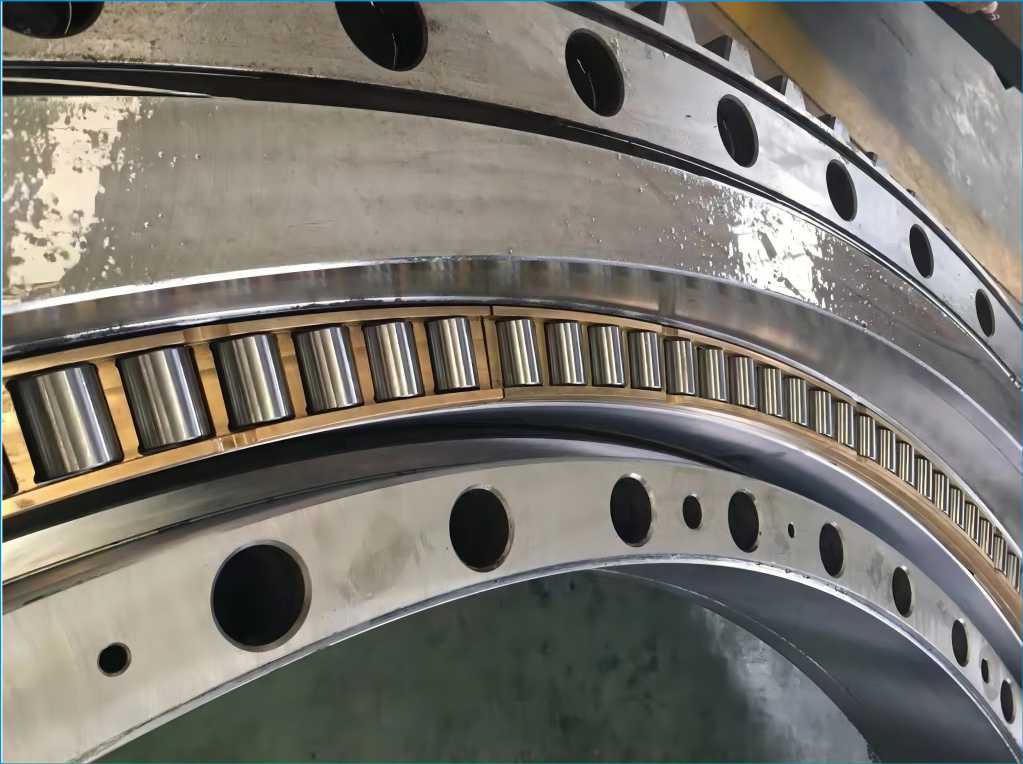

Triple-roller Slewing Bearing

SCB-TR Tri-Roller Bearings Increased stiffness and capacity over SCB-XR and SCB-DT OD size range up : 48"- 275"
