Why Filtration is Crucial in the Food Industry

Filtration in food processing is not just about clarity; it's essential for:

· Product Safety: Removing pathogenic microorganisms (bacteria, yeast, molds).

· Product Quality & Stability: Eliminating particulates that cause haze, sediment, or off-flavors.

· Shelf Life Extension: By removing spoilage organisms.

· Process Efficiency: Protecting downstream equipment (e.g., pumps, nozzles) from clogging.

· Consistency: Ensuring every batch meets the same standard.

· Compliance: Meeting strict food safety regulations (FDA, EC, 3-A Sanitary Standards).

Key Types of Filter Elements

Filter elements are categorized by their mechanism of separation and their structure.

1. By Mechanism

Type How It Works Common Element Examples

Surface Filtration Particles are trapped on the surface of the filter medium. Ideal for liquids with a high load of similar-sized particles. Membrane Filters, Sieves, Woven Wire Screens

Depth Filtration Particles are trapped throughout the depth of a porous medium. Ideal for liquids with a variable particle size distribution. Spun Polypropylene Cartridges, Sintered Polymers, Felt Pads

Adsorptive Filtration Removes particles, ions, or molecules by attracting and binding them to the surface of the filter media. Activated Carbon Cartridges, Resin-bonded Filters

2. By Structure & Material

This is the most common way to classify filter elements.

A. Cartridge Filters (Most Common Type)

These are self-contained,cylindrical elements placed inside a housing.

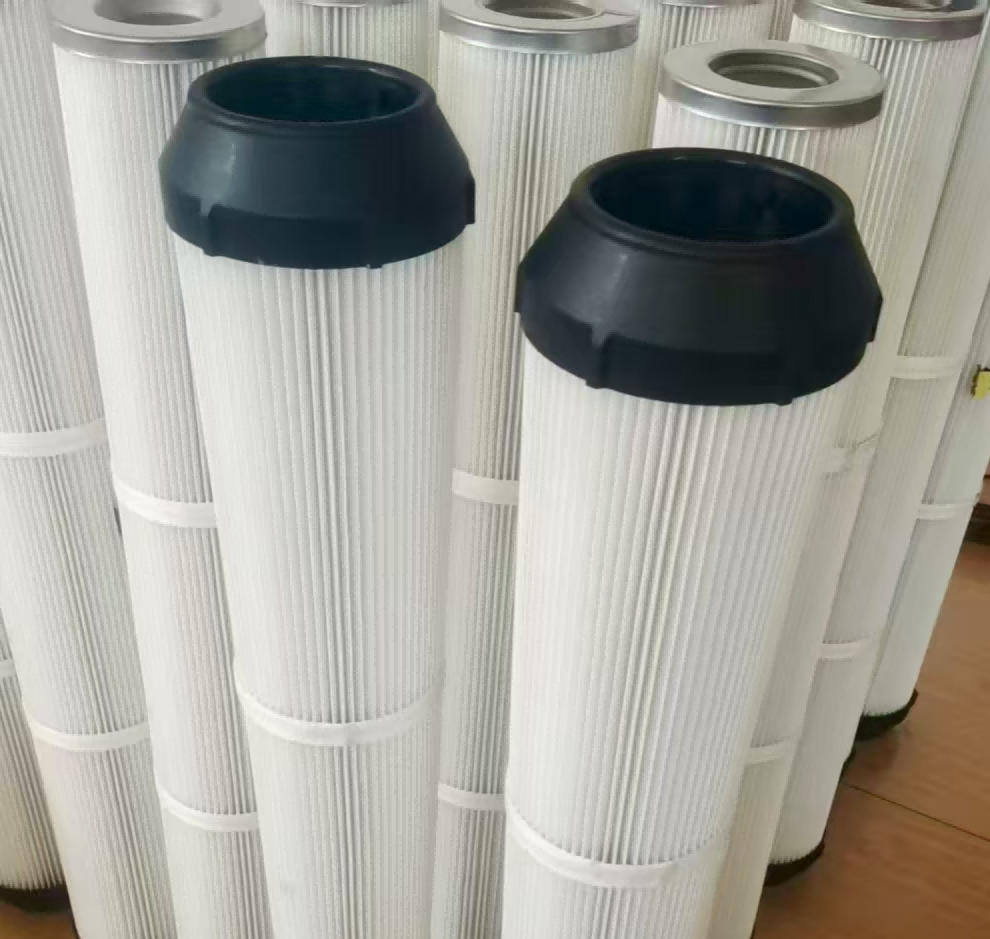

· Pleated Membrane Filters:

  · Material: Polypropylene (PP), Polyethersulfone (PES), Nylon (NY), Polytetrafluoroethylene (PTFE).

  · How it works: Surface filtration. The membrane has precise, uniform pores.

  · Applications: Final product sterilization (0.2 µm or 0.45 µm), polishing, clarification of water, syrups, wines, beers, and oils.

  · Advantages: Absolute pore rating, high throughput for clear liquids.

· Spun/Melt-Blown Depth Cartridges:

  · Material: Almost always Polypropylene (PP).

  · How it works: Depth filtration. The random fiber structure creates a tortuous path.

  · Applications: Prefiltration to protect more expensive membrane filters, removing sediment and haze from juices, pre-bottling beer filtration, water pretreatment.

  · Advantages: High dirt-holding capacity, cost-effective.

· Wound/String Cartridges:

  · Material: Cotton, polypropylene, or glass fiber yarn wound around a core.

  · How it works: Depth filtration.

  · Applications: Similar to spun cartridges, often for more viscous liquids or where a rigid structure is needed.

· Sintered Filters:

  · Material: Polyethylene (PE), Polypropylene (PP), or stainless steel.

  · How it works: Sintering fuses plastic or metal particles into a porous, rigid structure. Can be surface or depth.

  · Applications: Carbonation stones in brewing, sparging gases, catalyst recovery.

B. Bag Filters

Fabric bags made of felted or woven polypropylene,nylon, or polyester. They are placed in a bag housing.

· Applications: Coarse pre-filtration of incoming water, protecting pumps, screening solids in high-volume processes.

C. Metal Filters

· Woven Wire Mesh Screens: Used in sieves, strainers, and self-cleaning filters for products like fruit pulps, sauces, and dairy.

· Sintered Metal: Used for high-temperature or corrosive applications, gas filtration, and as diffusers.

Key Material Considerations & Certifications

· FDA Compliance: The material must be compliant with FDA regulations (Title 21 CFR) for food contact.

· 3-A Sanitary Standards: A voluntary standard for equipment design and fabrication that ensures cleanability and hygienic operation. Crucial for dairy, meat, and beverage industries.

· EC 1935/2004 (EU): The European framework for materials and articles intended to come into contact with food.

· Material Properties:

 · Polypropylene (PP): Chemically inert, widely used, cost-effective, and can be steam sterilized.

  · PES (Polyethersulfone): Hydrophilic, high flow rates, good for clarifying aqueous solutions.

  · Nylon: Hydrophilic, but can absorb flavors and is less chemically resistant.

  · PTFE (Teflon): Hydrophobic, chemically inert, and can handle aggressive solvents and high temperatures. Often used for vents and aggressive chemicals.

Common Applications in the Food Industry

Industry / Application -Typical Filter Elements & Pore Sizes

Water Treatment 5µm PP Depth → 1µm PP Depth → 0.2µm PES Membrane (for sterile process water)

Beer & Brewing Pre-filtration: PP Depth Cartridges (1-5µm). Sterile Filtration: 0.45µm or 0.65µm Membrane Cartridges. Tank Vents: 0.2µm PTFE Membrane.

Wine & Juice Haze Removal: Cross-flow filters or lenticular modules with filter sheets. Polishing/Sterilization: 0.45µm Membrane Cartridges.

Dairy Whey & Milk Clarification: Bag Filters or Metal Screens. Lactose Powder: Bag Filters. Standardized Milk: Centrifugal Clarifiers (not a filter element).

Edible Oils Post-Bleaching: Bag Filters or Plate & Frame Filters with filter sheets to remove bleaching earth. Polishing: PP Depth Cartridges.

Syrups & Soft Drinks Sugar Syrup: PP Depth Cartridges (5-25µm). Final Product: 0.45µm Membrane Cartridges to ensure biological stability.

Starches & Sweeteners Multiple stages of filtration, often using pre-coat filters (with diatomaceous earth) and polishing cartridge filters.

How to Select the Right Filter Element

1. What are you removing? (Particle size, type: yeast, bacteria, sediment, carbon?)

2. What is the liquid? (pH, viscosity, temperature, chemical compatibility?)

3. What is the required purity? (Clarification, polishing, or sterility?)

4. What is the process? (Batch or continuous? Flow rate? Pressure?)

5. Hygienic Requirements: Does it need to be steam-sterilized (SIP) or cleaned-in-place (CIP)? This dictates the need for 3-A sanitary housings and compatible elements.

6. Total Cost of Ownership: Consider not just the price of the element, but its dirt-holding capacity, lifespan, and the cost of downtime for changeouts.

Leading Manufacturers

· Pall Corporation

· Sartorius

· Merck Millipore

· 3M (CUNO filters)

· Eaton (Filtration division)

· Parker Hannifin (Domnick Hunter filters)

· Amazon Filters

· Graver Technologies

Always consult with a filtration specialist or the manufacturer to test and validate the correct filter for your specific application.
